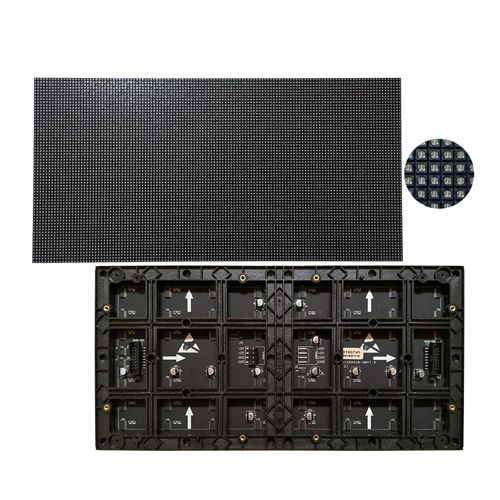

P2 LED Display Ultra HD 2mm Pixel Pitch Indoor LED Screen
-
Reviews (0)
-
Sold: 0
- View shop
৳ 10,000.00
-
Category
LED Display -
Sub Category
Indoor LED Display -
Brand
N/A
Key Features
Pixel Pitch: 2mm
Module Size: 320*160*15mm
Resolution: 128*64dps
Horizontal View Angle: 160 Deg.
Verticle View Angle: 140 Deg.
Last Updated: 17 Dec, 2025
৳ 10000.00
Free shipping
Quantity
Color
Details
Return policy: Eligible for Return, Refund or Replacement within 30 days of receipt Support: Free tech support included
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing angle | Wavelength | Testing condition | |
| Red | 3 IN 1 SMD | 70-100mcd | 160°/140° | 620-625nm | 25℃,20mA | |
| Green | 120-200mcd | 160°/140° | 515-530nm | 25℃,10mA | ||
| Blue | 30-40mcd | 160°/140° | 465-475nm | 25℃,5mA | ||
| Module Parameter | ||||||
| Pixel Pitch | P2mm | |||||
| Pixel Strcture | 3 IN 1 SMD | |||||
| Density | 250000pixels/㎡(real pixel) | |||||
| Module Resolution | 160pixel(L) * 80pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm (H) * 15mm(D) | |||||
| Cabinet Dimension | 640*480*48.5mm | |||||
| Cabinet Weight | .5 (kg) | |||||
| Single Point Brightness, Chroma Correction: Support | ||||||
| White Balance Brightness | ≥600 cd/㎡ | |||||
| Viewing Angle | 140°(Horizontal)； 120°(Vertical) | |||||
| Best Viewing Distance | ≥4+m | |||||
| Color Tempareture | 2000K-12500K (adjustable) | |||||
| Display Color | 68.7 Billion Color | |||||
| Brightness Uniformity | ≥97% | |||||
| Contrast Ratio | ≥5000:1 | |||||
| Process Performance | ||||||
| Single Processing bits | 16bits*3 | |||||
| Gray Scale | 12-16Bit | |||||
| Control Distance | Cable:100m, Optical Fiber:10KM | |||||
| Drive Mode | Constant current source driver | |||||
| Frame rate | ≥60Hz | |||||
| Refress rate | 1920-3840Hz | |||||
| Way to control | Synchronize | |||||
| Brightness adjustment range | 0-100 Stepless | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| User Paramiter | ||||||
| Working Temperature | -20～+50 ºC | |||||
| Stored Temperature | -30～+60 ºC | |||||
| Working Humidity | 10%～80% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Working Time | ≥72 hours | |||||
| IP Protection Grade | IP20 | |||||
| Out of Control Pixel Rate | ≤0.01% | |||||
| Electricity Parameter | ||||||
| Operating Voltage | DC 4.5-5V | |||||
| Power Requirements | AC 220 x (1±10%)V, 50x(1±10%)Hz | |||||
| Max. Power Consume | 650w/m2 | |||||
| Average Power Consume | 270w/m2 | |||||
The P2 LED Display is a premium high-resolution LED screen designed for indoor applications where image clarity and visual precision are essential. With an ultra-fine 2mm pixel pitch and very high pixel density, this LED display delivers sharp, smooth, and vibrant visuals even at close viewing distances.
Powered by advanced SMD LED technology, the P2 LED display ensures excellent brightness uniformity, accurate color reproduction, and wide viewing angles. Its high refresh rate provides flicker-free performance, making it ideal for live broadcasting, conference rooms, control centers, showrooms, studios, and corporate presentations.
The modular design allows flexible screen sizes and easy maintenance, while long control distance support via network cable or optical fiber makes it suitable for large indoor installations. Built for durability and energy efficiency, the P2 LED display is a reliable solution for professional visual communication.
-
